TANK – IMO 1

$7,000.00

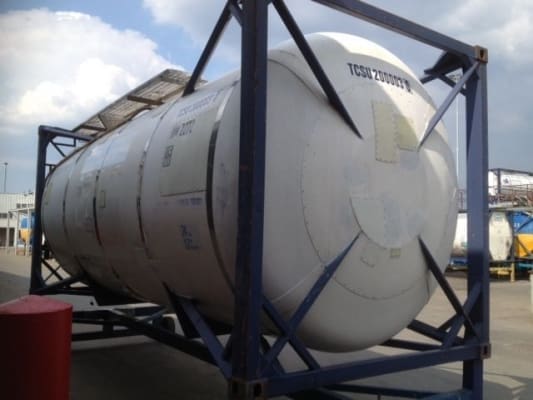

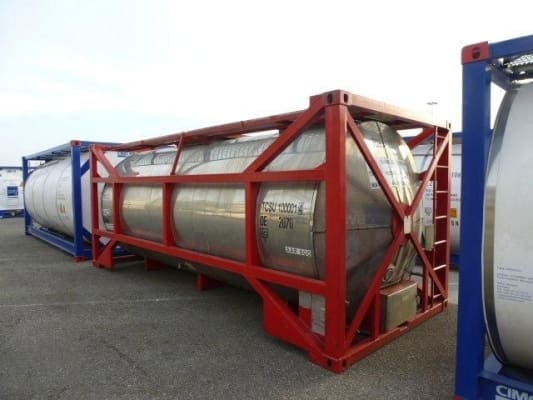

This 20-ft tank container has an IMO 1 certificate. The stainless steel tank has insulation and a protective layer, making it suitable for transporting chemicals with fire or explosion hazards. Loading usually happens through the manhole on the top of the container, and unloading takes place through the 3-way valve on the bottom of the tank.

Custom Quote

Category: Port Containers USA Tags: IMO container types, IMO tank types, IMO type 1 tanker, IMO Type 5 containers, IMO Type 7, Intermodal tank capacity, Tank imo 1 size, Tank imo 1 specs

Description
Reviews (0)

Description

TANK – IMO 1

TANK—IMO 1—Containers with the security level “IMO 1″” transport all liquid chemistry.

Equipment:

The cistern can hold 14,000 to 30,000 liters.
The shell thickness is 4 to 7 mm.
The top discharge setup depends on the cargo type.
The working pressure in the tank is 2.65 to 6 Bar.
It can have steam and electric curing.
It can also have an extra layer of heat insulation.

Characteristics
Capacity	Volume	Wall thickness	Maximum pressure	Working pressure	Steam heating surface	Thermal Insulation
20	11000 – 26000	5.2-8	4.5	3.0	2,5 – 10	0,7 – 0,28

	Weight
	Tare weight	Maximum gross weight	Maximum load capacity	Type of product	Safety devices according to international requirements
IMO 1 (Gasoline, Kerosene)	3500	24000 – 30000	20500	Gasoline, Kerosene	valve + serial engraved disc

This 20-ft tank container has an IMO 1 certificate. The stainless steel tank is insulated and protected, making it suitable for transporting chemicals with fire or explosion hazards.

Usually, loading happens through the manhole on the top of the container. Unloading takes place through the 3-way valve on the bottom of the tank. This 20-ft tank container can be changed. For example, you can switch from bottom loading to top loading. You can also add a handrail.
